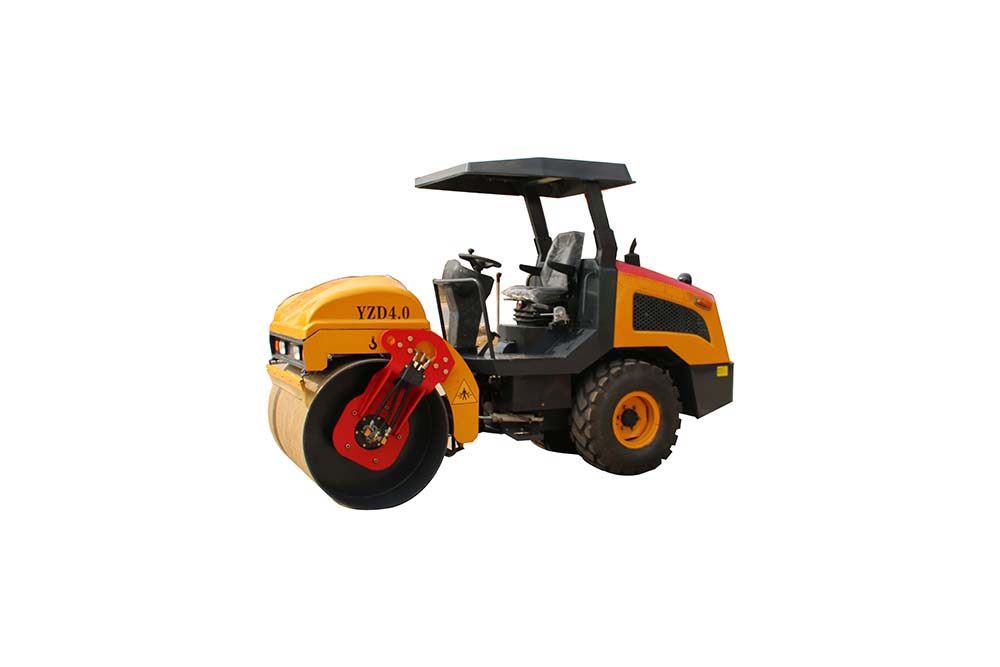

YZD4.0

发布时间:2016-01-26来源:青峰集团点击:242

YZD4.0

MAIN FEATURES:

1. Hydraulicvibrating and steering, Back wheel mechanical drive.

2.Single Drumroller suitable for earthwork compaction, back wheel is double antiskid tire,strong driving force and gradeability,

clamp-type drum can work to edge andcorner, suitable for narrow groove, it has narrow size in equal series.

3. China top brand4 cylinder water-cooling diesel motor strong power and fuel-efficient.transmission shaft through-drive is high efficient.

4.With fiberglasswater tank is anti-corrosion, convenient for humidification.

5.Flexible shaftcan adjusted to high speed mode. Convenient for transition on field.

MAIN SPECIFICATION:

 MODEL YZD4.0
 Operating Mass 4000   kg
 Staic Linear Load 140   N/cm
 Vibration Frequency 50   Hz
 Exciting Force 60   kn
 Travel Speed 2/5   km/h
 Gradeability30%
 Dimension(L×W×H) 3800×1450×2600
 Vibration Drum Width 1300   mm
 Drum diameter 1000   mm
 Minimum turning radius 3000   mm
 Wheelbase 2110   mm
 Min. ground clearance 240   mm
 Diesel Capacity 60   L
 Diesel Model CN490BPG
 Diesel Power 35   kw
 Water Tank Capacity 230   L
